continuous lighting solution
perfect lighting solution for facades

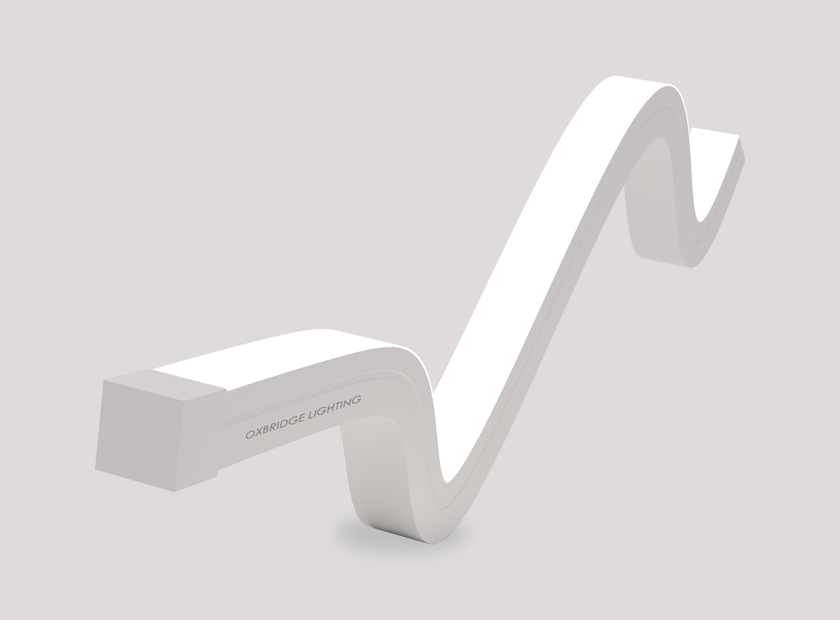

Flexline Beta is the neon strip light from oxbridge lighting provides an excellent accent lighting for your interiors and exteriors. Flexline can be easily mounted onto a surface, very versatile and can be cut to length or connected together to create a custom lighting setup. They can be controlled by a variety of methods including on/off and dimming options. Flexline is available
in multiple options with different CCTs, powers and IP ratings for the ease of use. Line is very compact with 10mm width and and having 182 LED modules per meter which provides a dotless lighting. The Flexline allows a cutting option for every 12.5mm which helps customer for all requirements in length. The product is available in IP67 modes also in order
to satisfy the indoor and outdoor needs. Accessories are available for flexline to make its installation a hassle free one.


An input
of 24V DC
Flexline works continuously on uninterrupted 24V DC constant. Since the input is a common standard voltage, flexline is lft with enormous no of supply.


Solvent &
salt water resistant
Flexline is by default resistant to salt water and chemical solvents, hence its, suggested to use even in laboratories. Also the flexline is temporary resistant to immersion.
Download Family Specification

Flame
Resistant
Flexline can withstand with high temperatures and heat, hence you can avoid the fear luminaire catching fire. The adhesive materials used are fire resistance.
Download datasheet according to required power, CCT, lumens & control type.
Photo | Alpha Numeric Code | Power | CCT | Control Type | Lumens | IP rating | Ordering code | File |
---|---|---|---|---|---|---|---|---|
![]() | FLB01027KC80NAFL67GN | 11.5W/m | 2700K | on/off | 638lm/mtr | IP67 | 729100001 | |
![]() | FLB01030KC80NAFL67GN | 11.5W/m | 3000K | on/off | 645lm/mtr | IP67 | 729100002 | |
![]() | FLB01040KC80NAFL67GN | 11.5W/m | 4000K | on/off | 734lm/mtr | IP67 | 729100003 | |
![]() | FLB01065KC80NAFL67GN | 11.5W/m | 6500K | on/off | 710lm/mtr | IP67 | 729100004 | |
![]() | FLB010REDC80NAFL67GN | 11.5W/m | RED | on/off | 90lm/mtr | IP67 | 729100005 | |
![]() | FLB010BLUC80NAFL67GN | 11.5W/m | BLUE | on/off | 234lm/mtr | IP67 | 729100006 | |
![]() | FLB010GREC80NAFL67GN | 11.5W/m | GREEN | on/off | 48lm/mtr | IP67 | 729100007 | |
![]() | FLB010RGBC80NAFL67GN | 11.5W/m | RGB | on/off | 356lm/mtr | IP67 | 729100008 |
Other Downloads
Download other related files
Downloads
Includes all downloads based on your chosen specification
Code: TXY00727KC90S2SY44SN

TXY-XXXX-XXXX-XXXX-XX
