Echo Sq
Elegant Square Tiltable Design.
Versatile functions
Experience the perfect balance of style, performance, and adaptability with Echo Sq, bringing the excellence of the Echo downlight into a sophisticated square form. Designed with a sleek adjustable cone bezel, this LED downlight enhances architectural aesthetics while delivering superior lighting quality.
- Available in three square cutout sizes: 44x44mm, 68x68mm, and 92x92mm.
- Lumen output range from 350lm to 2800lm for diverse lighting needs.
- Advanced optical system ensures precise light control for visual comfort.
- Features adjustability for precise positioning, enhancing flexibility in lighting design.

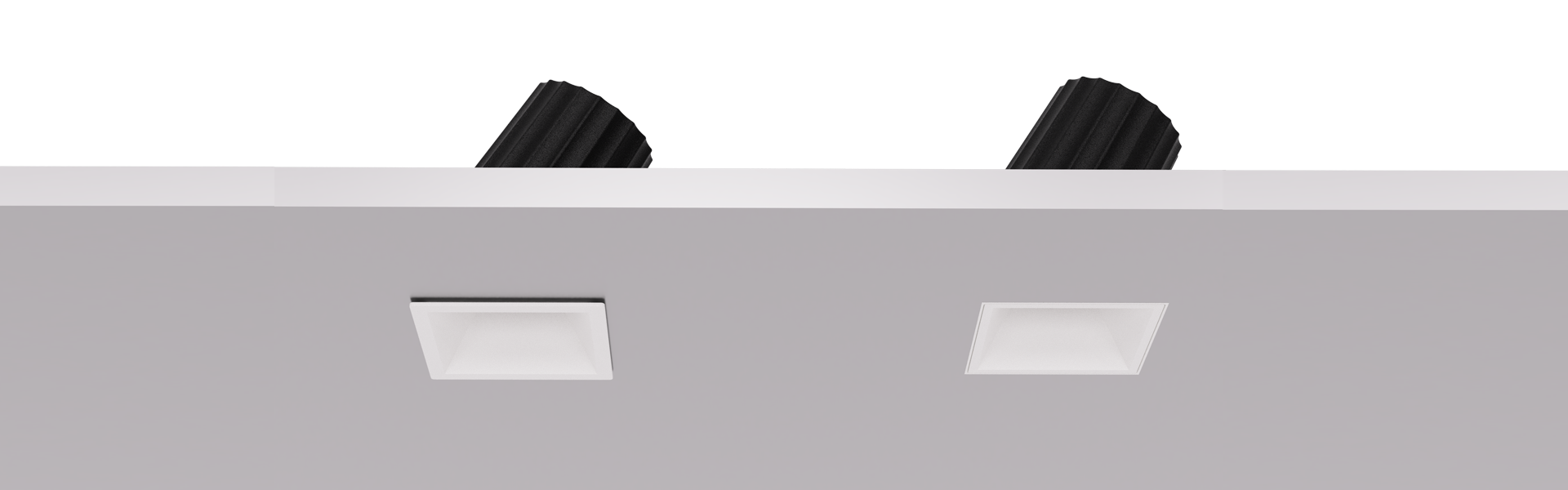

- Available in 3mm trim and trimless versions for seamless ceiling integration.
- Offers CCT options of 2700K, 3000K, and 4000K with CRI 90 as standard.
- Ideal for residential, commercial, and hospitality applications.
- Elegant design and precision engineering make it perfect for spaces requiring both aesthetics and performance.
A double flute profile design
LED heatsink features two parallel or symmetrically arranged channels that enhance heat dissipation and airflow management. This design increases the surface area, allowing for better thermal conductivity and reducing overall thermal resistance, ensuring efficient cooling of high-power LED modules.

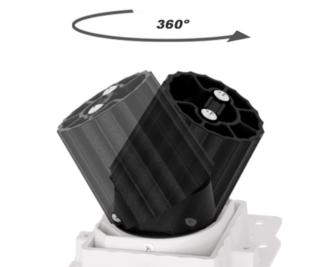

Precise Positioning & Adjustability
Echo Sq offers effortless adjustability using an Allen key, allowing precise positioning even after installation. Its fine-tuning capabilities ensure optimal light direction, providing enhanced flexibility for architects, designers, and installers alike
Valued Performance
Engineered with advanced optics and efficient thermal management, it delivers optimal brightness with minimal glare, ensuring visual comfort in various applications
Handful of Optics
The Echo Sq LED Downlight comes with a handful of optics, offering a versatile lighting experience tailored to various applications. Designed with precision-engineered lenses and louvres, Echo provides multiple beam angles, ensuring optimal light distribution for both ambient and task lighting.
Downloads
Includes all downloads based on your chosen specification
Code: TXY00727KC90S2SY44SN
TXY-XXXX-XXXX-XXXX-XX
Made In UK
5 Years Warranty
Specification Code Details
Made In UK
5 Years Warranty
